    Hawk Merlin Floor Buffer 17 and 20 inch 2 Speed

    Thumbnail Filmstrip of Hawk Merlin Floor Buffer 17 and 20 inch 2 Speed Images

      Purchase Hawk Merlin Floor Buffer 17 and 20 inch 2 Speed

      SKU: hawk_merlin_2speed
      Hawk Merlin Floor Buffer 17 and 20 inch 2 Speed

      $0.00

      Model and Size:


      Description

      Hawk Merlin 2 Speed Floor Machine

      Floor Stripping, Scrubbing, Restoration

      Hawk Merlin 2 Speed Models

      1. F71-17-01 MERLIN 2S 17 INCH FLOOR MACHINE 2-SPEED W/XHD GEARS &
        WEIGHTS, 1-1/2 HP DC 115V 50/60 Hz
      2. F71-20-01 MERLIN 2S 20 INCH FLOOR MACHINE 2-SPEED W/XHD GEARS &
        WEIGHTS, 1-1/2 HP DC 115V 50/60 Hz
      3. F71-17-DX MERLIN 2SDX 20" FLOOR MACHINE 2-SPEED W/XHD GEARS,
        WEIGHTS, & CHROME MOTOR, 1-1/2 HP DC 115V 50/60 Hz
        (INCLUDES -TANK, DIAMOND PAD DRIVER, & SPLASHGUARD)
      4. F71-20-DX MERLIN 2S DX 20" FLOOR MACHINE W/XHD GEARS &
        WEIGHTS, 1-1/2 HP DC 115V 50/60 Hz (INCLUDES -TANK,
        DIAMOND PAD DRIVER, & SPLASHGUARD)
      The Merlin 2-Speed takes advantage of innovative engineering to set new records in production and user safety. Our unique “Floating Head” handle carriage design provides 100% contact with the floor, incorporating forward movement instead of the traditional side-to-side buffing. The Merlin draws 1/3 less amps than standard machines. Strip and scrub floors at 165 RPM.  Buff and polish at 300 RPM.

      Power
       1.5 HP, 66 frame, DC rectified 2-speed motor
       115V, 50/60 Hz power, (230V optional)
       50 ft., (12-3) SJTOW power cord with molded plug
       Hi-Lo 2-speed toggle switch on motor

      Drive System
       Triple planetary XHD 11:1 helical cut industrial gears, case
         hardened with steel coupler
       Gears drive brushes and pads at 165 and 300 RPM

      Engineered Design
       WDTM  Wheels Down pin-lock handle disassembles in 60 seconds
         without tools, for transport and storage
       All steel construction with welded powder coated frame
       Includes removable 80# weight set
       17” and 20” steel brush cover with wraparound bumper
       Thumb-operated safety switch. Negative pressure on/off switch.  Dual steel operating triggers.
       2” x 8” non-marking load bearing, ball bearing wheels

      Safety Features
       Quiet operation – 66 dB (low speed), 72dB (high speed) Meets
         GS42 standard.
       UL / CUL Listed

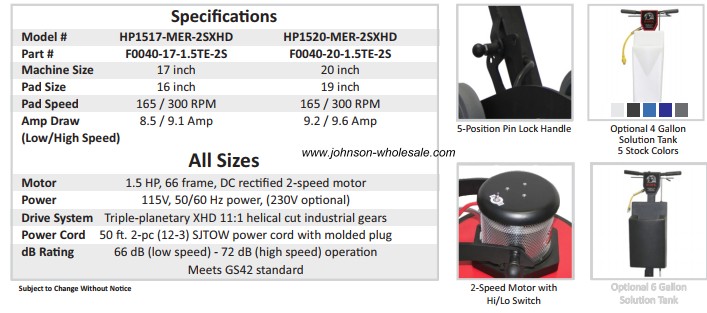

      merlin specs
