Merlin takes advantage of innovave
engineering and modern
design to set new records in producon
and user safety. Our
unique “Floang
Head” handle carriage design provides 100%
contact with the floor and steers the Glide in forward-andbackward
movement - unlike the side-to-side movements of
tradional
rotary machines.
Description
Hawk Merlin Floor Machine TEXHD WD
Floating Head Severe Duty Industrial Floor Machine
Hawk Merlin Models
- F70-17-01 MERLIN TE 17 INCH FLOOR MACHINE W/XHD GEARS &
WEIGHTS, 1-1/2 HP TEFC 180 AC 115/230V 60 Hz - F70-17-01-C MERLIN TECP 17 INCH FLOOR MACHINE W/XHD GEARS,
WEIGHTS, & CHROME MOTOR, 1-1/2 HP TEFC 180 AC 115/230V
60 Hz CP - F70-17-01-DX MERLIN TE DX 17 INCH FLOOR MACHINE W/XHD GEARS,
WEIGHTS, & CHROME MOTOR, 1-1/2 HP 180 AC 115/230V 60 Hz
CP (INCLUDES- TANK, DIAMOND PAD DRIVER, SPLASHGUARD,
& CHROME MOTOR) - F70-20-01 MERLIN TE 20 INCH FLOOR MACHINE W/XHD GEARS &
WEIGHTS, 1-1/2 HP TEFC 180 AC 115/230V 60 Hz - F70-20-01-C MERLIN TECP 20 INCH FLOOR MACHINE W/XHD GEARS,
WEIGHTS, & CHROME MOTOR, 1-1/2 HP TEFC 180 DC 115/230V
60 Hz CP - F70-20-01-DX MERLIN TEDX 20 INCH FLOOR MACHINE W/XHD GEARS,
WEIGHTS, & CHROME MOTOR, 1-1/2 HP TEFC 180 AC 115/230V
60 Hz CP (INCLUDES - TANK, DIAMOND PAD DRIVER,
SPLASHGUARD, & CHROME MOTOR)
Merlin takes advantage of innovative engineering and modern design to set new records in production and user safety. Our unique “Floating Head” handle carriage design provides 100% contact with the floor and steers the Glide in forward and backward movement - unlike the side-to-side movements of traditional rotary machines.
Power
• 1.5 HP, 180 frame, TEFC dual capacitor DC motor
• 115-230V, 60 Hz power
• 50 ft. 2-pc, (12-3) SJTOW industrial power cord
Drive System
• Triple-planetary XHD 11:1 helical-cut industrial gears with case-
hardened steel coupler drives brushes and pads at 165 RPM
Engineered Design
• WDTM Wheels Down handle disassembles in 60 seconds without
tools, for transport
and storage
• All steel construction with welded “Floating Head” frame
• Powder-coated steel handle with 5-position pin lock
• HD motor guard. Steel brush covers w/wraparound bumper.
• Thumb-operated safety switch. Dual steel operating triggers.
• Negative pressure on/off switch
• 2” x 8” non-marking load bearing, ball bearing wheels
• Increase productivity with the optional solution tanks
• Includes 80 lb. weight set
Safety Features
• Quiet 66 dB operation. Meets GS42 standard.
• All steel construction with welded “Floating Head” frame
• Powder-coated steel handle with 5-position pin lock
• HD motor guard. Steel brush covers w/wraparound bumper.
• Thumb-operated safety switch. Dual steel operating triggers.
• Negative pressure on/off switch
• 2” x 8” non-marking load bearing, ball bearing wheels
• Increase productivity with the optional solution tanks
• Includes 80 lb. weight set
Safety Features
• Quiet 66 dB operation. Meets GS42 standard.
• UL/CUL listed

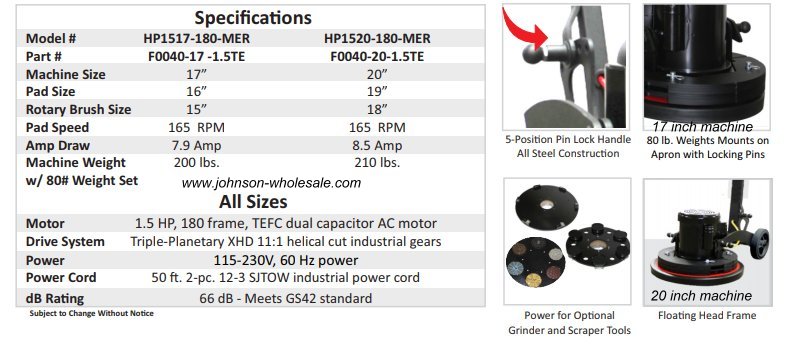

All Sizes Motor 1.5 HP, 180 frame, TEFC dual capacitor AC motor Drive System Triple-Planetary XHD 11:1 helical cut industrial gears Power 115-230V, 60 Hz power Power Cord 50 . 2-pc. 12-3 SJTOW industrial power cord dB Rang 66 dB - Meets GS42 standard
