SKU: Merlin_360
Hawk Merlin DBC 360 Floating Head Severe Duty Floor Machine

Description

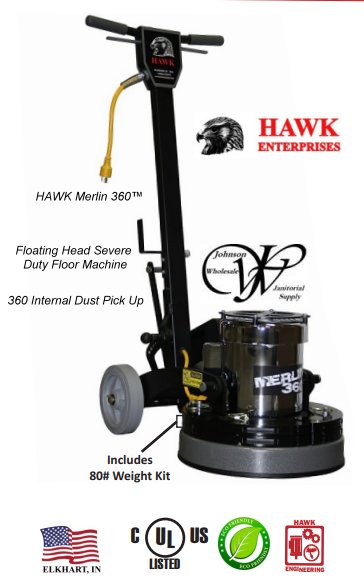

 HAWK Merlin 360™ Severe Duty Machine

Information

• with 360 Internal Dust Pick Up

• Stripping, Sanding, Resurfacing & Polishing

• Floating Head Severe Duty Floor Machine

Hawk Merlin 36 Models

1. F75-17B
   MERLIN360 TEDC 17 INCH FLOOR MACHINE W/XHD GEARS,
   WEIGHTS, & BUILT IN DUST PICKUP, 1-1/2 HP TEFC 180 AC
   115/230V 60 Hz - BLACK MOTOR

2. F75-17C
   MERLIN360 TEDC 17 INCH FLOOR MACHINE W/XHD GEARS,
   WEIGHTS, & BUILT IN DUST PICKUP, 1-1/2 HP TEFC 180 AC
   115/230V 60 Hz -- CHROME MOTOR

3. F75-20B
   MERLIN360 TEDC 20 INCH FLOOR MACHINE W/XHD GEARS,
   WEIGHTS, & BUILT IN DUST PICKUP, 1-1/2 HP TEFC 180 AC
   115/230V 60 Hz - BLACK MOTOR

4. F75-20C
   MERLIN360 TEDC 20 INCH FLOOR MACHINE W/XHD GEARS,
   WEIGHTS, & BUILT IN DUST PICKUP, 1-1/2 HP TEFC 180 AC
   115/230V 60 Hz -- CHROME MOTOR

The HAWK Merlin 360™ combines the “Floating Head” WD™ Wheels Down engineering design with the proprietary Hawk 360™ dust pick up system.

The 360 Dust Pick Up System collects airborne dusts and debris in the brush cover with its proprietary 360 degree duct system. A 2” topmounted dust port connects to all commercial tank vacuums with 1.5” or 2” hose. Cutting, polishing and floor sanding debris control is now safe and simple.

The Merlin 360 is built for high productivity in harsh environments like concrete resurfacing and natural stone polishing. It is powered by a 180 frame TEFC dual capacitor AC motor with a severe-duty, helical-cut 11:1 gear drive.

Power:

• 1.5 HP, 180 frame TEFC dual capacitor AC motor

• Black or chrome motor cover. Includes motor impact protection plate

• 115-230V, 60 Hz (50 Hz optional)

• 50 ft., (12-3) 2-piece industrial power cord with twist lock

• Extra heavy-duty steel helical-cut 11:1 gear drive with steel coupler

Engineering Design:

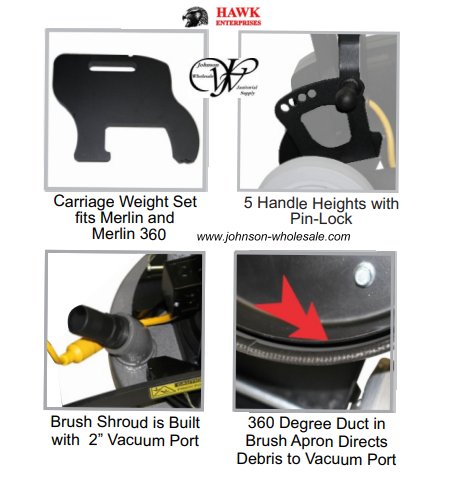

• Built with HAWK 360 dust pick up brush cover and with wraparound dust guard

• Floating-Head WD™ Wheels-Down steel handle has 5 position pin-lock

• Powerful motor drives scrapers, diamond tools and sanding tools

• The heavy-duty motor guard protects the motor from impact damage

• Foot operated Lift Assist lever for easy transport

• Dual steel operating triggers with negative pressure on/off switch

• Thumb-operated safety switch with comfort cushion grips

• 2” x 8” non-marking load bearing ball bearing wheels

• Includes removable weight set w/ (4) 20 lb. weights and locking pins

• Optional (2) 25 lb. carriage weight kit (#HPA0032-1)

Safety Features:

• Built in dust collection

• Quiet 66 dB meets GS42 standard

• Build with UL/CUL listed components
